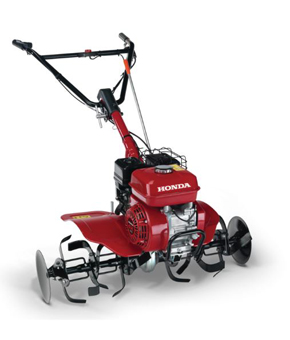

Honda FJ500 SER

The Honda FJ500 SER is a tough tiller with a gearbox and nine attachment options.

Key Features
- Swing Handle
- Gearbox

Function
Max Tilling Width (mm) - 900
Max Tilling Depth (mm) - 300
Forward Speeds - 1
Reverse Speeds - 1
Forward Tool Rotation Speed (rpm) - 113 rpm
Reverse Tool Rotation Speed (rpm) - 28 rpm

Engine
Engine - 4-stroke OHC
Engine Model - GX160
Engine Displacement (cc) - 163
Engine Net Power (kW/rpm) - 3.4/3600
Engine Net Torque (Nm/rpm) - 10.3/2500
Fuel Tank Capacity (litres) - 2.4
Engine Oil Capacity (litres) - 0.58
Starter - Recoil
Drive Clutch - Manual belt tension
Transmission - Constant mesh
Final Transmission - Chain
Sound Pressure at Operators Ears (dB(A)) - 81
Guaranteed Sound Power Level (dB(A)) - 96
Vibration (m/sec2) - 5.8

Handle
Foldable Handle - Yes
Height Adjustment Handle - Yes

Dimensions
Dimension (L x W x H) - 1395 x 925 x 990
Dry Weight (kg) - 45/57

ACC
Rotors/Tines Supplied - Multiple rotor options
Side Discs - Yes
De-Thatcher / Scarifier - Optional
Ridger - Optional
